Home > Products > AD01 2 Pin (40A)

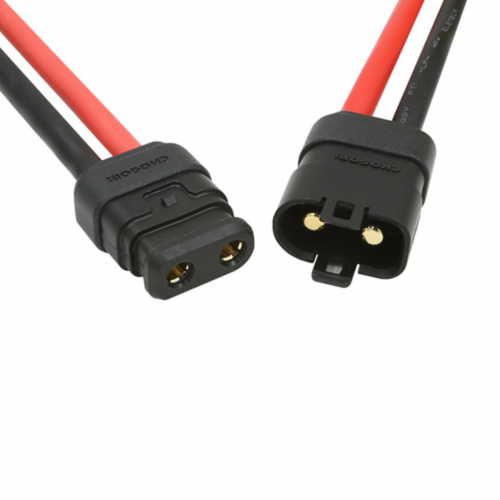

AD01 2 Pin (40A)
Hits: 0
Brand: Chogori
Price: N/A
Min quantity:
Quantity:
Delivery: In 3 days
Expiry: Long-term
Update date 2025-03-14 15:19

Detail

Applications: For charging & discharging use, cable to panel solution

Advantages
• High Current for Power Interface
• Small and Compact
• IP67 Robust Overmold Type
• Durable,Electrically and Mechanically
• Stable Connection in Vibrating Environment
• Blind Mating and Quick Connect

Specifications

Voltage Rating：48V AC / 60V DC

Operating  Temperature：-40°C to 105°C

Current Rating：40A Max

IP Rating：IP67

Withstand Voltage：1,000V AC

Mating Cycle：100 Times Min (Without load)

Insulation Resistance：>20MΩ Min@500V DC

Wire Gauge：10AWG/ 5.0mm²
