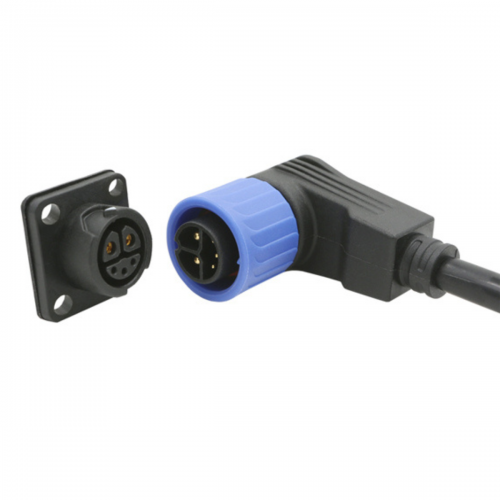

Middle 2+3 Pin (20A)
Hits: 174
Brand: Chogori
Price: N/A
Min quantity:
Quantity:
Deliver: In 3 days
Expiry: Long-term
Update date 2026-01-06 14:21

Detail
Applications: For charging & discharging use, cable to panel solution

Advantages
• Power & Signal Hybrid Combination
• With audible click when locking engaged
• RoHS and REACH compliant

Specifications

Mating Cycle：≥500 Cycles

Voltage Rating：300V DC

Operating Temperature：-40°C to 105°C

Pullout Force：<100N

Current Rating：20A + 5A

IP Rating：IP67 Mated

Wire Processing：Solder

Withstand Voltage：2,000V AC

Salt Spray：5% Nacl, 48H

Wire Gauge：
Power 14AWG/ Max
Signal 20AWG/ Max

Insulation  Resistance：>100MΩ at DC 500V

Flammability Rating：

UL94V-HB (Plastic Material) / Plug Side

UL94V-0 (Plastic Material) /  Panel Side
